CFD Analysis of Underground Car Park

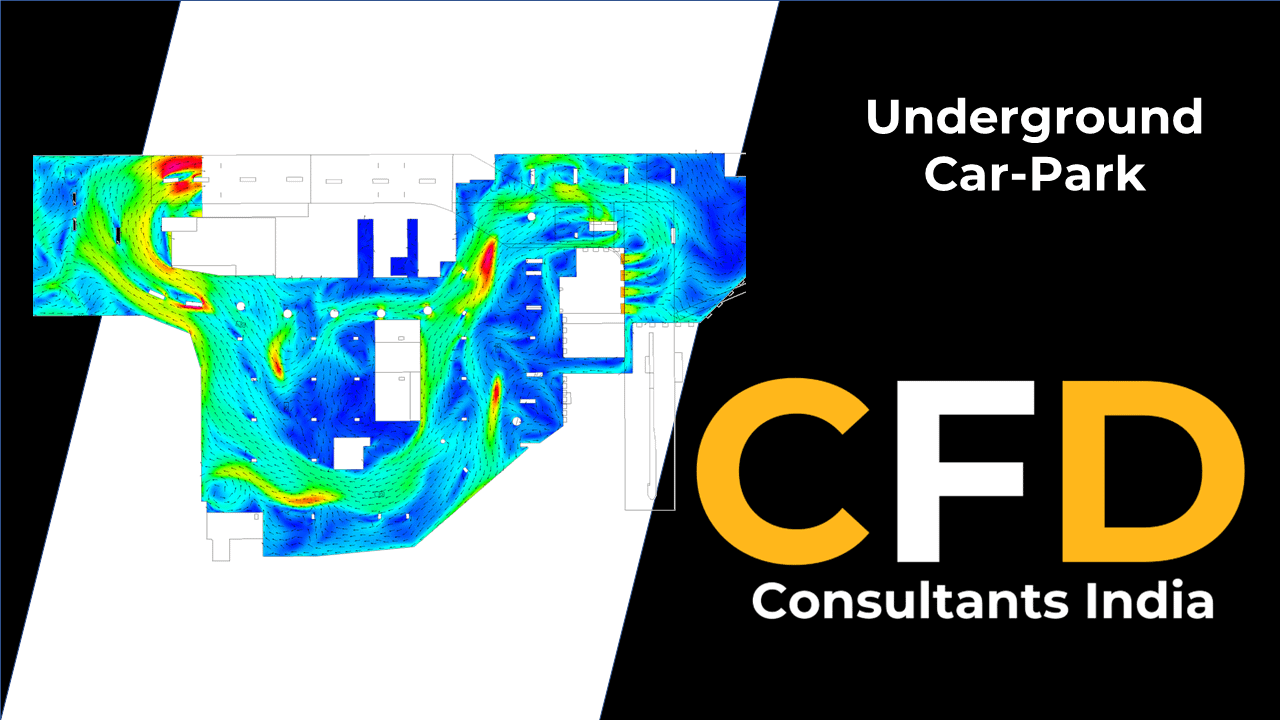

CFD analysis of underground car park
The feature image illustrate the application of CFD analysis in optimizing flow in underground car park to ensure safe and comfort user experience within the car park

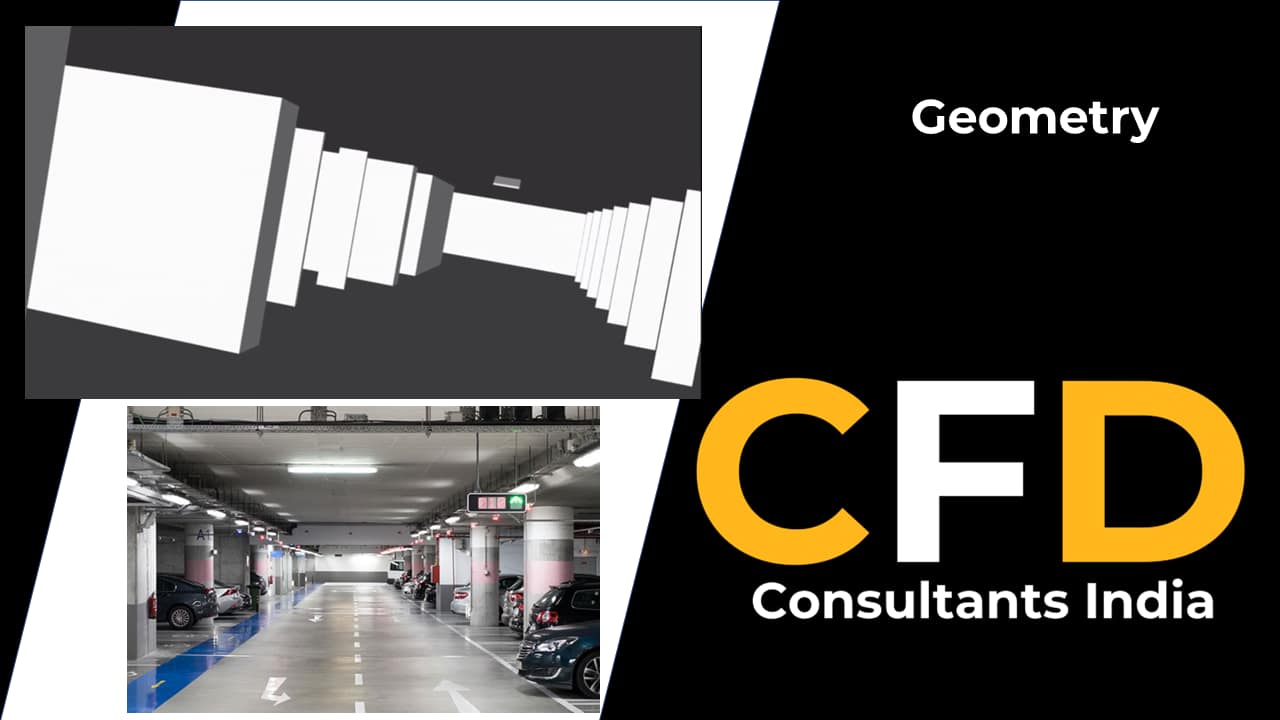

Illustration of the underground car park's layout for CFD analysis
Visualizing the layout and structure of the underground car park in preparation for CFD analysis

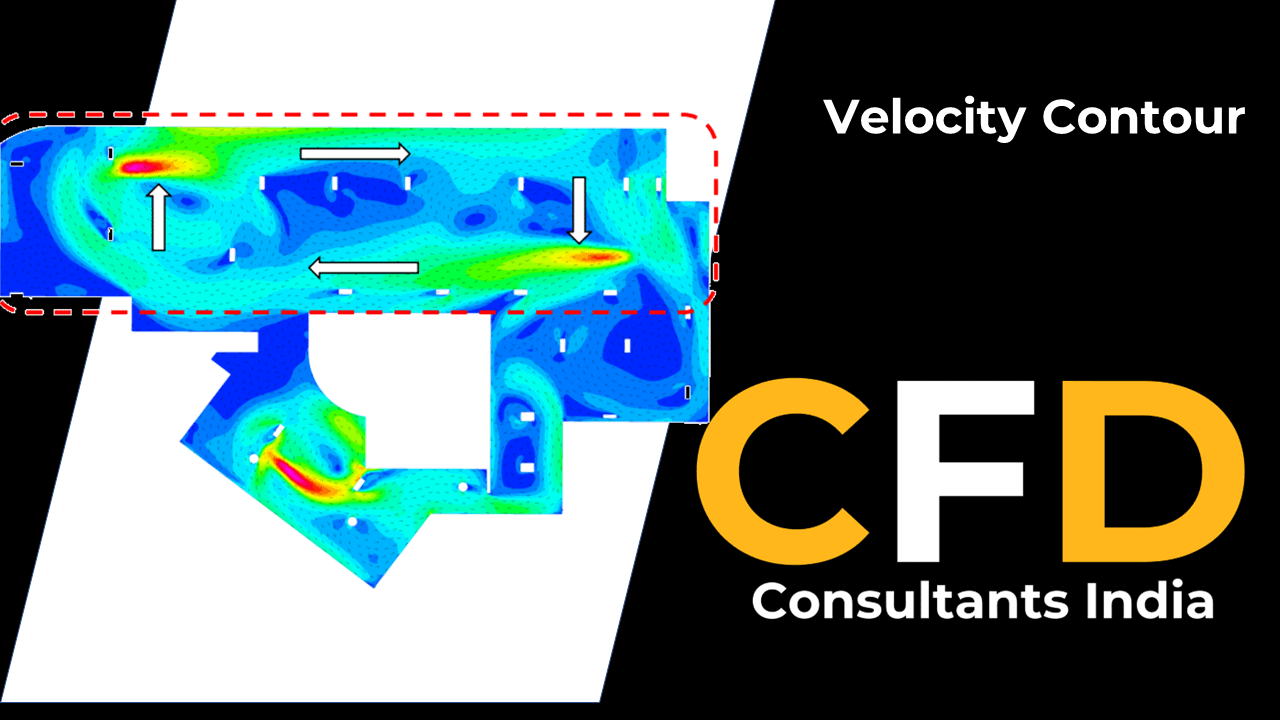

Visualization of air velocity distribution within the underground car park
Examining how air velocity circulates within the underground car park through CFD analysis

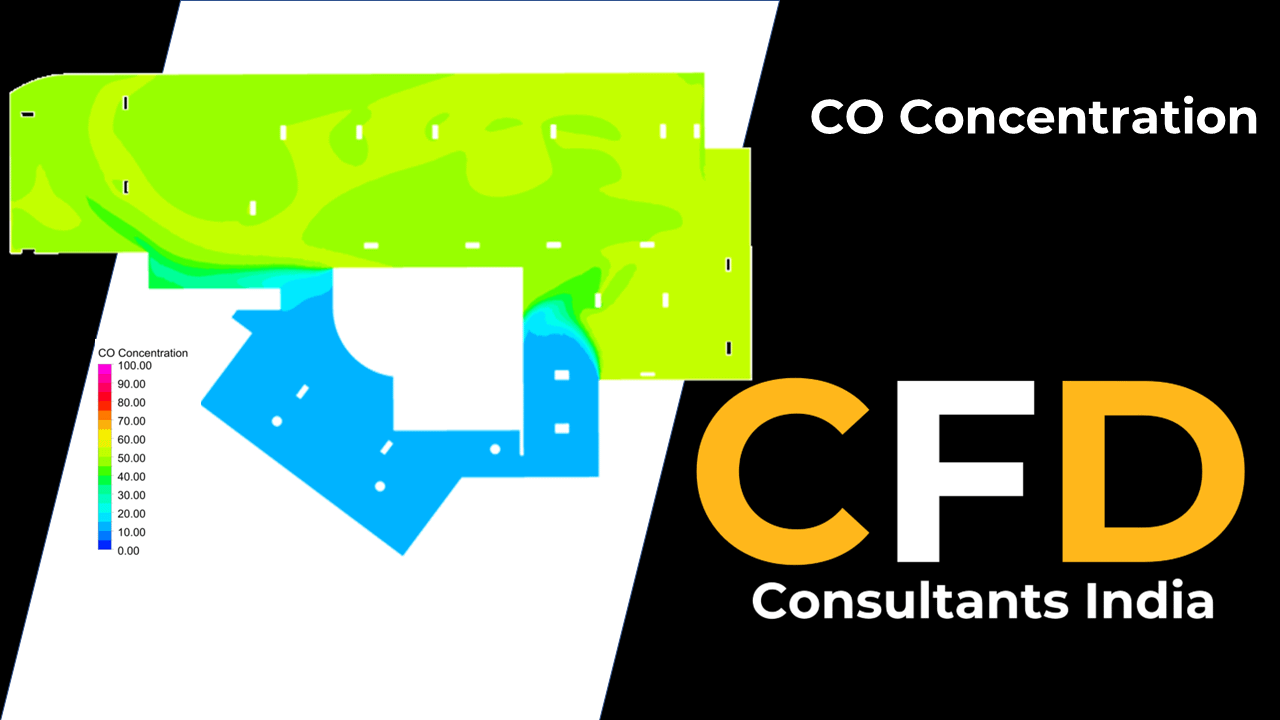

Representation of carbon monoxide (CO) concentration in the underground car park
Analyzing the distribution of carbon monoxide concentration using CFD, ensuring safe air quality

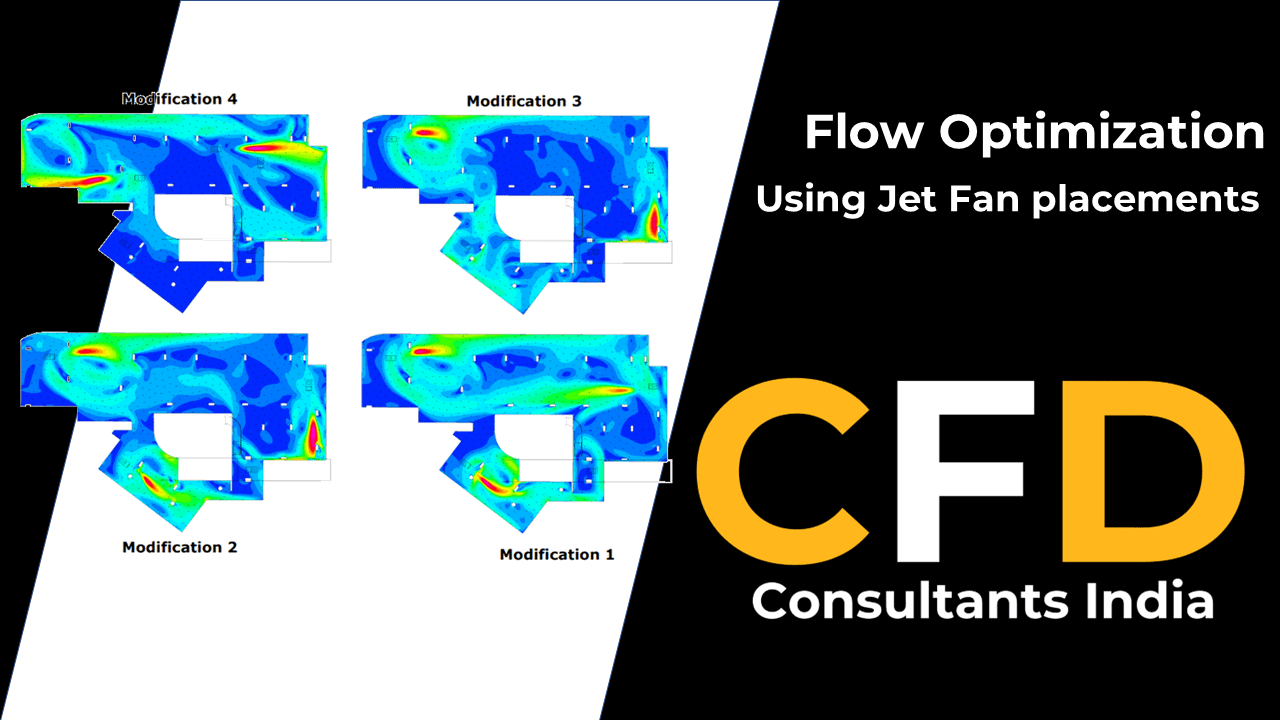

Illustration showcasing flow optimization techniques applied in the CFD analysis
Implementing optimization strategies based on CFD insights to enhance car park design

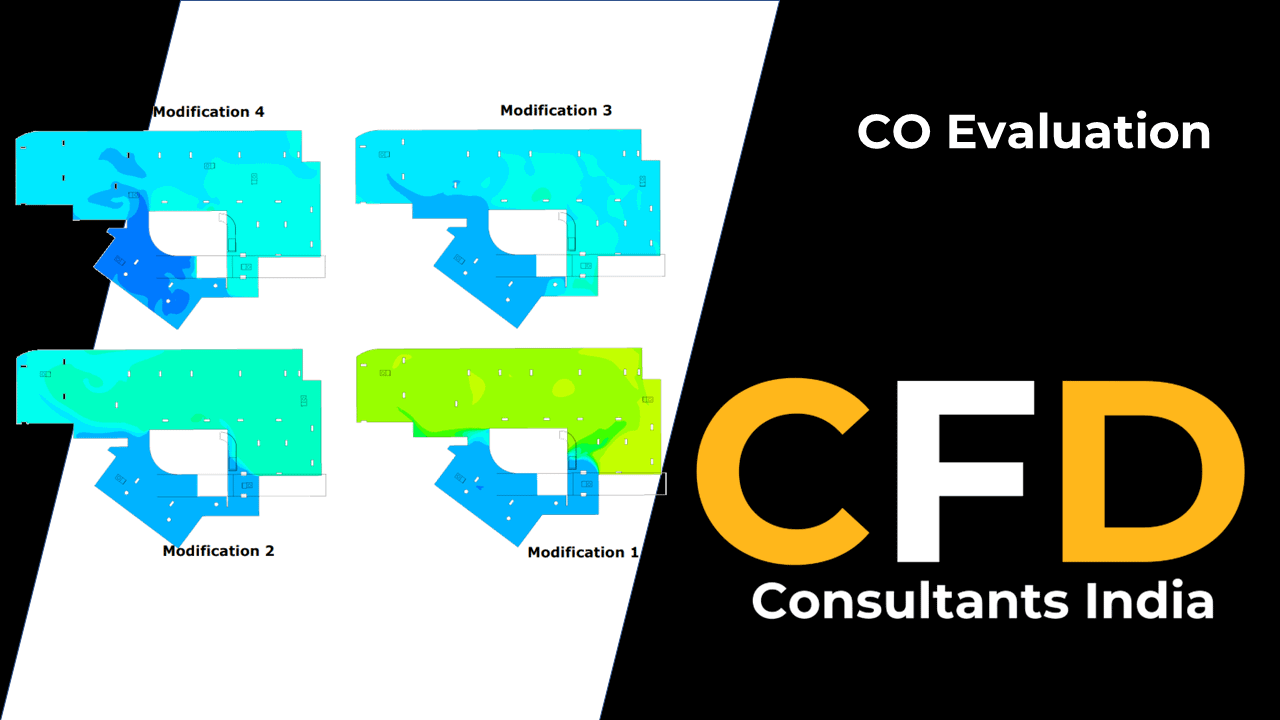

Illustration showcasing optimization techniques applied in the CFD analysis
Reduced CO concentration values based on CFD insights to enhance air quality and occupant comfort

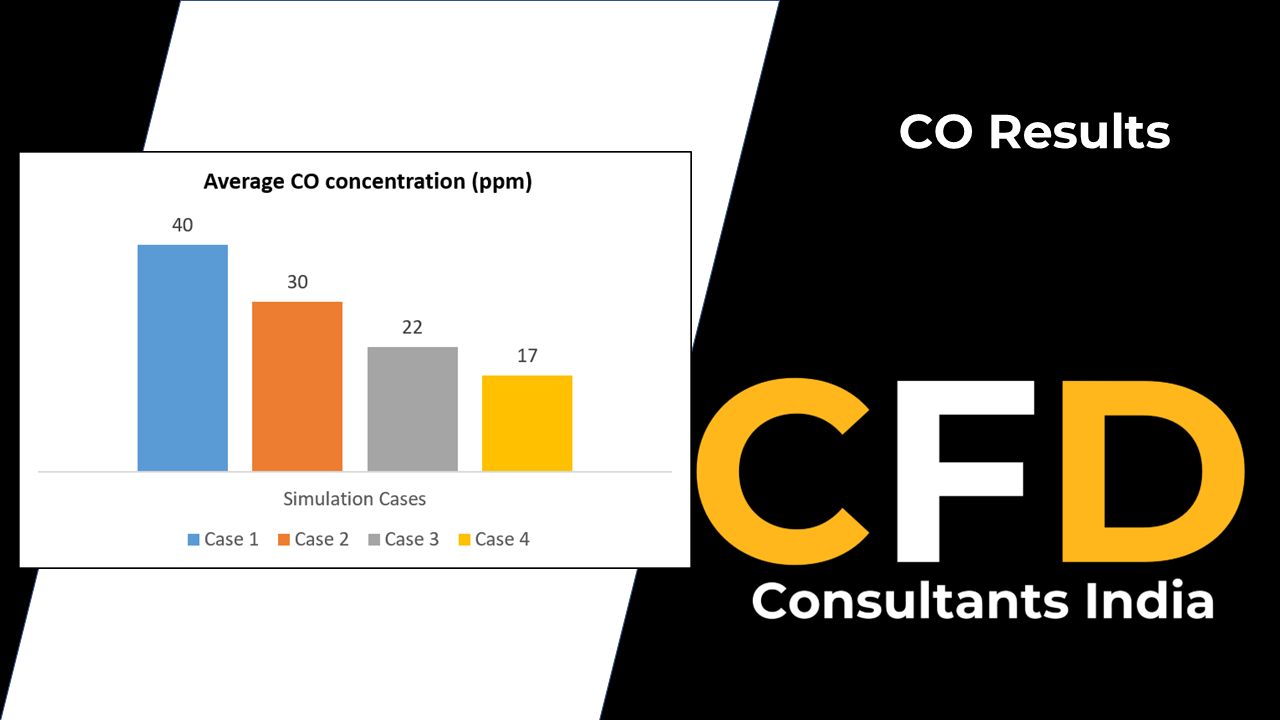

Graph depicting decreasing carbon monoxide (CO) concentrations with design evolution
Visual representation of how CO concentrations have decreased over design iterations through CFD analysis

 Introduction

Underground car parks are an integral part of urban infrastructure now days, this provided convenient parking solutions in congested areas and specially in highly living cost area where land area for parking is limited. However, ensuring proper airflow and ventilation in these enclosed spaces is crucial for maintaining air quality, removing pollutants, and ensuring the safety and comfort of users. The whole idea is to create breathable air for children, teenagers and old age peoples. In this case study, we explore how CFD Analysis of underground car park was employed to optimize the airflow and ventilation system of an underground car park, resulting in improved air quality and enhanced user experience.

Objective

The objective of this study was to evaluate the existing airflow and ventilation system of an underground car park and propose design modifications to enhance air circulation and Carbon Monoxide( CO ) pollutant dispersion. The CFD analysis aimed to identify potential areas of stagnant air, optimize the placement of jet fan, axial fan, exhaust and supply vents, and assess the effectiveness of the ventilation system.

Results and Conclusion

The CFD analysis revealed several insights and recommendations for enhancing the airflow and ventilation system of the underground car park. Key findings included:

1. Identification of stagnant air zones: The simulation helped identify areas with poor airflow and stagnant air pockets, which were associated with inadequate ventilation.

2. Optimization of exhaust and supply vents: The positioning and size of exhaust and supply vents, jet fans , axial fans were modified based on the simulation results to ensure better air circulation, pollutant extraction, and fresh air supply.

3. Evaluation of air quality and thermal comfort: The simulation results enabled the assessment of pollutant dispersion and ensuring compliance with air quality standards and enhancing occupant comfort.

4. Validation of design modifications: The proposed design modifications, including changes to vent locations and sizes, were validated through CFD simulations to demonstrate their effectiveness in improving airflow and ventilation efficiency. The overall CO concentration through simulation is drop down form 40 ppm to 17 ppm.

By implementing the recommended design modifications based on the CFD analysis, the underground car park witnessed significant improvements in airflow, pollutant dispersion, and thermal comfort. The optimized ventilation system not only enhanced air quality but also contributed to the overall safety and user experience within the car park.

To visualize flow insights of your underground car park, contact us on info(at)cfdconsultantsindia.com

FAQ

Most frequent questions and answers

The spaces which lies below the ground level and does not have any scope for natural ventilations.

Since this space is lies below the ground level and do not have any natural incoming flow, the forced ventilation is required to supply fresh airflow. In addition to that, moving vehicle emits toxic flue gases along with CO (carbon monoxide) which is harmful for human to breath. Therefore this flue gases need to be get replace with incoming fresh airflow.

CFD simulation help HVAC and fire/safety Engineers to understand the airflow and gives the information about toxic gases and their concentration in the spaces. This helps to HVAC engineer to modify and optimize the airflow strategy for the ventilation.
