CFD Analysis of Office Ventilation for Comfort

Introduction

In modern office environments, ensuring optimal ventilation is critical not only for maintaining air quality but also for enhancing occupant comfort and productivity. Computational Fluid Dynamics (CFD) analysis provides a powerful tool for evaluating and optimizing ventilation systems to create comfortable indoor environments. This case study illustrates the application of CFD analysis to optimize office ventilation for maximum comfort. Let’s dive into CFD Analysis of Office Ventilation for Comfort, case study which is successfully implemented at office space situated at Dubai location.

Client Background

The client, a leading corporate office building management firm from UAE, sought to enhance the indoor air quality and comfort levels of their office spaces. They aimed to optimize their ventilation systems to ensure consistent airflow distribution, temperature control, and pollutant removal while minimizing energy consumption

CFD Methodology

The methodology involved creating a detailed 3D model of the office space, incorporating boundary conditions such as outdoor weather data and HVAC system specifications.

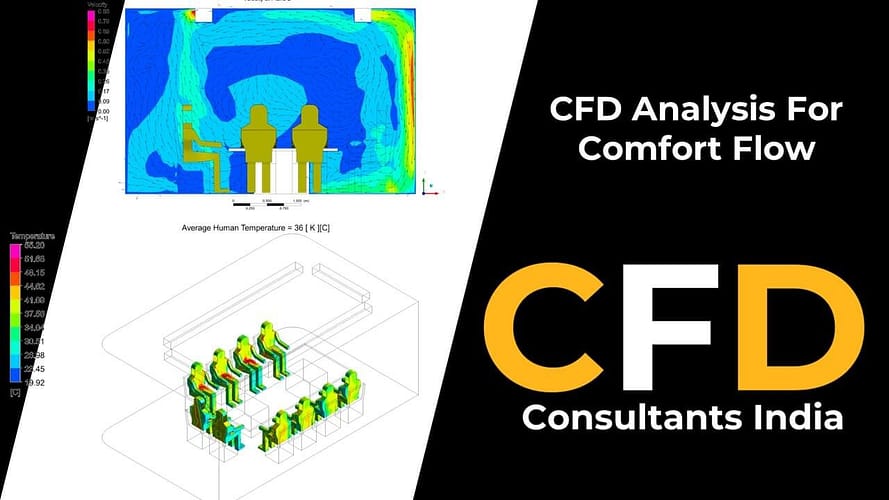

Computational Fluid Dynamics (CFD) simulations were conducted to analyze airflow patterns, temperature distribution, and pollutant dispersion under various operating conditions. Results were evaluated against comfort criteria, including temperature gradients, air velocity, and pollutant concentration levels. Optimization strategies were then implemented to improve ventilation performance while minimizing energy consumption. This iterative process of simulation, analysis, and optimization enabled the identification and resolution of ventilation challenges, ensuring a healthier and more comfortable indoor environment for office occupants.

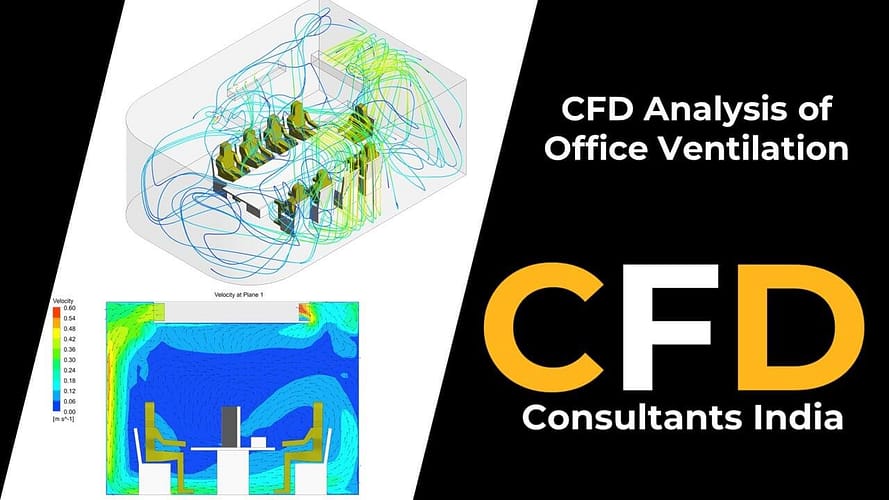

Comfort Air Velocity and Air Jet in Office Spaces

Critical aspect addressed through CFD analysis was the optimization of comfort air velocity and air jet distribution within office spaces. High air velocities or concentrated air jets can cause discomfort for occupants, leading to draft sensations and temperature stratification.

By simulating airflow patterns and velocity profiles, optimal air distribution strategies were identified to minimize air velocity gradients and eliminate draft issues. Additionally, the placement of air diffusers and the adjustment of airflow direction helped create a gentle and evenly distributed air jet, ensuring consistent comfort levels across the office environment. Through these measures, CFD analysis played a vital role in optimizing airflow dynamics to enhance occupant comfort and well-being in office spaces.

Short Circuit Flow and Solutions

 CFD analysis revealed a common issue of short circuit flow or bypass flow, where cold air from supply vents traveled directly to outlets without proper mixing, leading to uneven temperature distribution.

To address this, supply vent positioning was adjusted to promote better airflow mixing, and airflow deflectors were strategically installed to redirect airflow patterns and disperse cold air more evenly. Additionally, HVAC system parameters were optimized based on CFD results to minimize short circuit flow while maintaining energy efficiency. These solutions ensured more uniform airflow distribution, enhancing occupant comfort and productivity in the office environment.

By implementing the design modifications recommended by our CFD analysis, we have significantly enhanced the performance of office ventilation system. Reach out us on info’at’cfdconsultantsindia.com to know more about your ventilation space.
